 The idea of our project  ** Danish version ** |

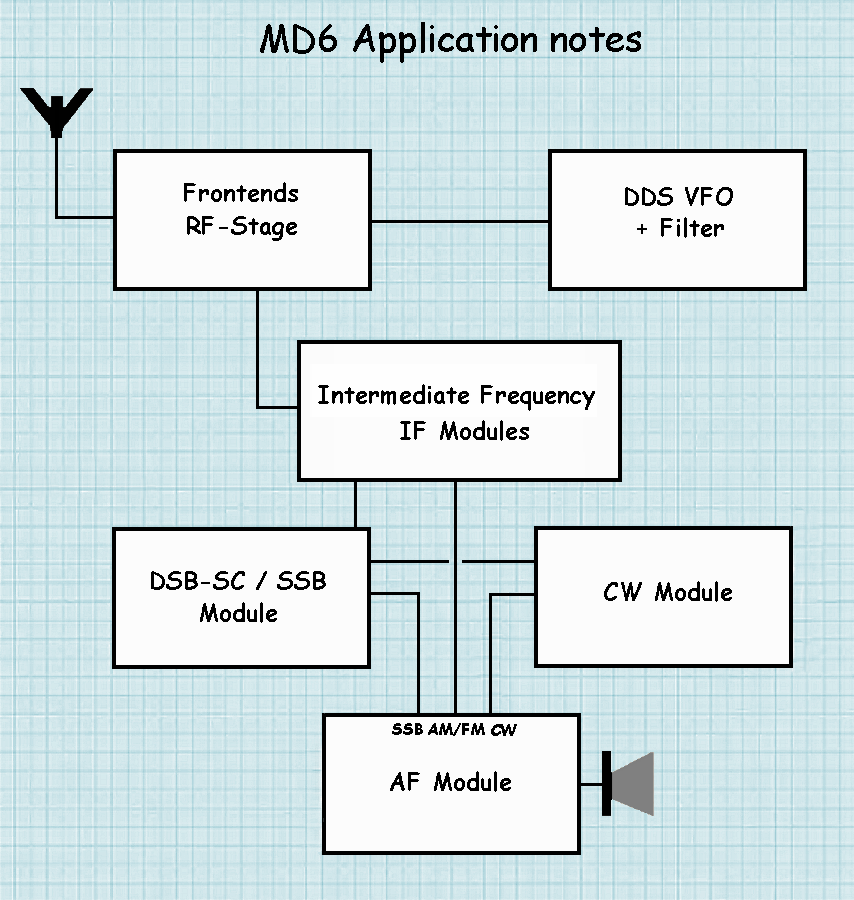

 * A electronics project for many purposes and frequencies * VLF - LW - MW - SW and VHF Among other, build a complete receiver with AM - FM - SSB - CW controlled by a stable DDS VFO ** Everything from antenna to speaker **  Click on the picture Get more info and how you start up your BSP MD6 project |
 Get the BSP catalog in PDF We do not sell complete kits, only project layouts with associated PCBs and selected components. |
 |
| Frontend modules (RF-stage): | |||
MD6 VLF-MB: Covers from 10 kHz til 2 MHz. PDF Manual: MD6 VLF - MB |
 MD6 SW-KB: Covers from 1.6 to 30 MHz PDF Manual: MD6 SW - KB |
 MD6 VHF6M: Covers the 6 meter band from 50 to 54 MHz. PDF Manual: MD6 VHF6M |
 MD6 VHF: Covers the 2 meter band from 144 to 146 MHz. or the Airband. With coil change, also fine for the 4 meter band 70 MHz. PDF Manual: MD6 VHF |
| IF Modules (10.7 MHz): | |||
 MD6 AM-IF: 10.7 MHz. Intermediate Frequency AM with S-meter, connection and outlet for 455 kHz for DSB / 'SSB'. PDF Manual: MD6 AM - IF |
 MD6 IF-MF: 10.7 MHz. Intermediate Frequency AM / FM with S-meter, squelch, connection and outlet for 455 kHz for DSB / 'SSB'. PDF Manual: MD6 IF - MF |
 MD6 IF-7x7: 10.7 MHz. Intermediate Frequency AM / FM with S-meter, squelch, connection and outlet for 455 kHz for DSB / 'SSB'. PDF Manual: Use MD6 IF - MF (For 7x7 mm IF-cans). |
Find out more about the
individual modules: Click on the image or Download or just read the corresponding manual. |
| VFO filters and external clocks: | |||
 MD6 VFO (1): Usually supplied suitable for 10.7 intermediate frequency, but can also be supplied for other user-selected intermediate frequencies, or as a direct signal generator. Can also be supplied for 'external clock', suitable for our 'clock module' Mercury or an external precision 10 MHz OCXO. PDF Manual: MD6 VFO |
'Made in Collins
design'.MD6 VFO 2: Normally supplied suitable for 10.7 intermediate frequency, but can also be supplied for other user selected intermediate frequencies. The VFO has the same technical specifications as VFO1, but has been added automatic 'filter bank control' and repeater change when using 2 meters. PDF Manual: MD6 VFO 2 |
 MD6 PLL-Filters: Cleans up the relatively dirty PLL signal, so that unwanted 'mixing signals' are attenuated / removed from the desired listening frequency. The filters are designed so that they can be 'clipped on' to both types VFOs as 'sandwich PCB'. PDF Manual: MD6 PLL - Filtre |
 Precisions 10 MHz OCXO for our externel 10 MHz clock VFO version. ****** |
 MD6 Mercury: Is a small and easily mountable external 25 MHz. clock module, just to screw on the SI 5351 PLL unit in an VFO adapted to external clock. Mercury is only supplied as a fully assembled and tested module. PDF User Guide: MD6 Mercury |
 To use external clock modules, the VFO must be prepared for external clock. This is done with 2 interventions. In the SI 5351 itself as shown and in the software. These are carried out by us when a complete VFO is ordered. |

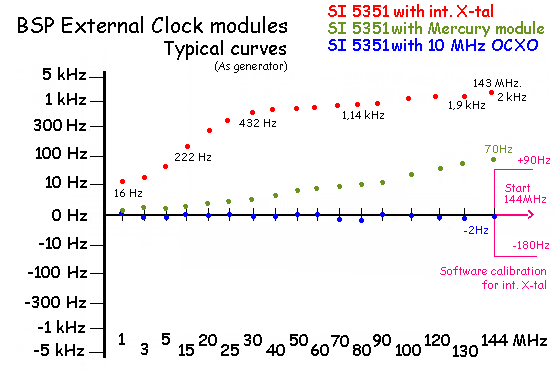

 Our pre-assembled VFOs with internal clock frequency deviate usually up to a few kHz on 2 Meter. Therefore, the individual VFOs are measured for the deviation of 144 MHz. and subsequently 'software corrected' from this frequency up (red curve). Anything below 144 MHz. (green curve) is not affected by the function. |
 Typical curves. |
| Expansion modules: | |||
 MD6 DSB-SC: Is a balanced DSB (USB/LSB) demodulator straight to connect the 455 kHz output on our intermediate frequencies and on to our LF amplifier module. PDF Manual: MD6 DSB - SC |
 MD6 CW-AF: Is a AF CW filter at 800 Hz. (a further development of the well-known MD 503 CW filter). The filter works on AF base and is suitable for connecting between 'MD6 DSB-SC' the demodulator and our AF amplifier module. PDF Manual: (is on the way). |
 MD6 AF-LF: Is an AF amplifier (2.5W) which includes 2 De-emphasis filters. One for PM (FM) -6dB/octave and a straight response for the speech area, + a signal path without filtering for listening to music. (separate regulation of PM level). PDF Manual: MD6 AF - LF |

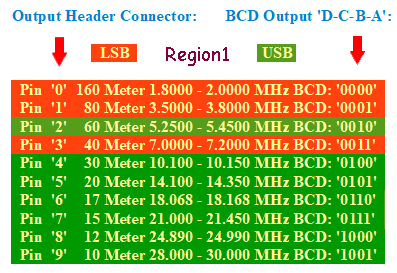

 VFO 2 has 2 types of output for automatic control of an external TX ham's filter bank. '0 to 9 outputs' via flat cable and a 'four terminal' BCD coded output if this solution is preferred. For 2 meter use, it is also equipped with 'on/off' repeater switching controlled by '+ TX '. All outputs are 5V TTL level. |
| Other products and info: |
|
*** This is how you shop at Bensoe Print *** You order goods by writing an email to ' jansteendk'a'hotmail.com ' where, in addition to your address, you write what you want plus quantity. From here, your email will be answered with an invoice for the total amount, including shipping. When it is registered that the payment has been made, the goods vill be sent immediately from here. Payment can be made via PayPal (via the mentioned email address), or via our bank account, mentioned in the invoice. |

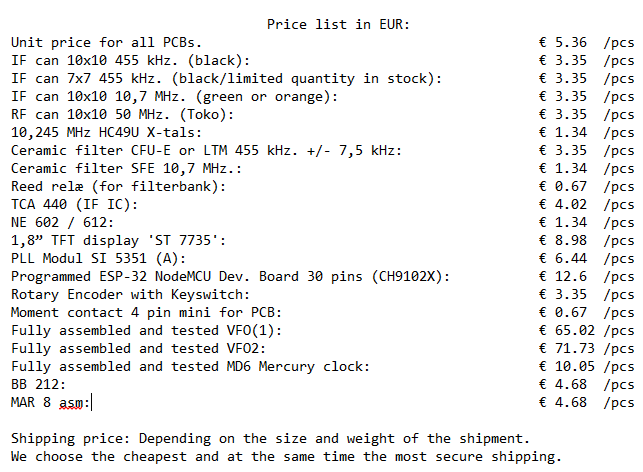

PCBs: The following applies for all PCBs: 1.5mm double-sided FR4 quality print with plated solder pads, roll-tinned with solder mask and component silkscreen. We do not sell complete construction kits, but here are the components we can help with:  |
*** Facts about Bensoe Print
*** Bensoe Print is a private one-person company run according to the rules of private trade and is therefore not currently VAT registered. Bensoe Print /v Jan Sorensen Engparken 35 3400 Hillerod Denmark. Email: jansteendk 'a' hotmail.com  Read about Bensø Print's history all the way back from the late 60s (Danish texts). ******** Best 73s OZ 8AO / OZ3MZ / OZ1UM ******** |
